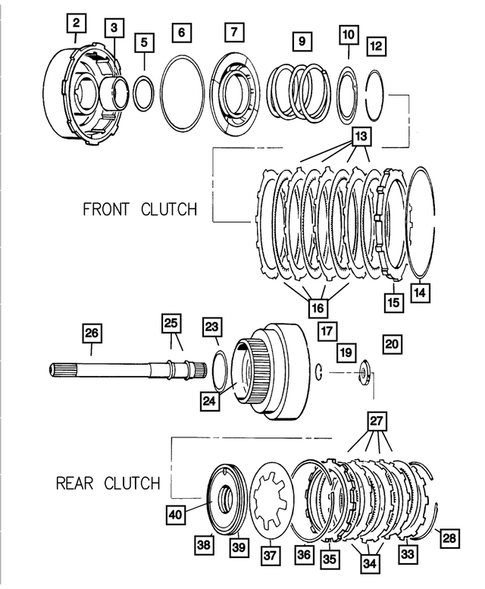

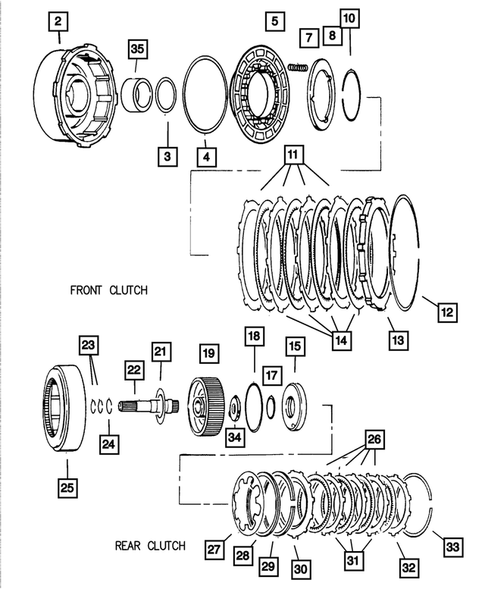

Gear Train for 2003 Dodge Dakota
No.
Part # / Description / Price
Price
N/A
Rear Clutch Retainer Seal
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Piston Retainer Oil Seal Lock, 1-7/8" O.D.
N/A
Check Ball Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Dia-.187. Transmission Overdrive Clutch Piston Check Valve
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .106``-.108`` Thick
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .080``-.082`` Thick
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .074``-.076`` Thick
N/A
Transmission Clutch Seal Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: [4637078ab also for an1].
MSRP $51.80
$36.52
MSRP $51.80
$36.52
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .088``-.090`` Thick
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .116``-.118`` Thick
N/A
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .098``-.100`` Thick
3
Front Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front Clutch Piston, Inner
4
Front Piston Clutch Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front Clutch Piston, Outer
8
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front. Clutch Piston Spring
10
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Frt. Clutch, Inner, .060" Thk., 3" I.D.
MSRP $4.40
$3.07
MSRP $4.40
$3.07
12
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Frt. Clutch, .050" Thk., 7-8/64" O.D.
13
Transmission Clutch Reaction Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Reactioin
17
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston, Inner
18
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Piston, Outer
19
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston
19
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Clutch Piston
21
Front Clutch Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front. Clutch Thrust, Rear
22
Transmission Input Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Input.
23
Input Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: INPUT SHAFT
24
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rr. Clutch Piston Retainer, .060" Thk., 1-31/64" O.D.
27
28
Rear Clutch Piston Spacer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rr. Clutch Piston Spring, Plastic, 6-13/16" O.D
29
Rear Clutch Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Wave
30
Clutch Pressure Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear. Clutch Pressure, Front
31
33
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .065``-.067`` Thick
34
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Red .068. Intermediate Shaft, Thrust, w/ 3 Point Bronze Face, .068" Thk.
No.
Part # / Description / Price
Price
N/A
Rear Clutch Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .098
N/A
Check Ball Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Dia-.187. Transmission Overdrive Clutch Piston Check Valve
N/A
N/A
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: Green .083
N/A
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Red .068. Intermediate Shaft, Thrust, w/ 3 Point Bronze Face, .068" Thk.
N/A
Transmission Front Clutch Retainer And Bushing 1 Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: NONE
N/A
Rear Clutch Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .095
N/A
Rear Clutch Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .107
N/A
Rear Clutch Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .076
3
5
6
10
Transmission Front Clutch Piston Spring Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
15
16
Clutch Separator Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: With [V] Notch
17
20
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: Gray .052
23
Front Clutch Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .060`` Thick
24
Rear Clutch Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: 1.50 ODx.009 Thk
25
Transmission Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: INPUT SHAFT
28
34
Clutch Separator Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: Without [V] Notch
37
37
40
Rear Clutch Piston Seal, Inner Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: ~
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

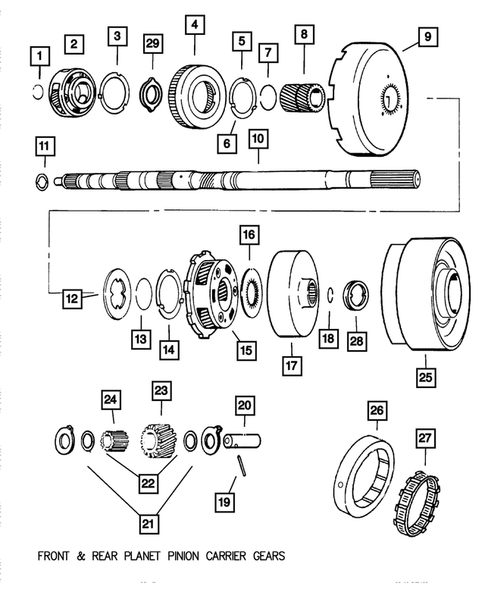

No.
Part # / Description / Price
Price
1
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 1.108 Free Diameter. .062``-.066`` Thick
2
Planetary Carrier Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 5 tabs.
3
Planetary Carrier Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear, With / 4 Tabs , 3 13/32` O.D.
4
Front Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: WIth Support 2.5` Diameter Center Hole
4
Front Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: WIth Support 2.5` Diameter Center Hole
5
Planetary Carrier Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 4 Tabs. 4 Tab
6
6
Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 6 Tabs.
MSRP $7.80
$6.44
MSRP $7.80
$6.44
7
Sun Gear Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Driving Shell Lock
$12.88
$12.88
8
9
10
Transmission Intermediate Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: With Plug.
11
Transmission Module Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Intermediate Shaft, Thrust .060" Thick
12
Sun Gear Driving Shell Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Thrust, with 4 Inside Tongs
15
16
Annulus Gear Thrust Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Rear Annulus Gear Thrust, with 31 Inside Teeth, 3-23/64"
17
Rear Annulus Gear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: REAR ANNULUS
18
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Reverse Drum Retaining
19
Dowel Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .108x1.00. Front and Rear, Planet Pinion Shaft
20
21
Planetary Carrier Thrust Washer, Front And Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
22
Planet Pinion Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
23
Transmission Planetary Pinion Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
24
Front And Rear Pinion Roller Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
25
Automatic Transmission Drum Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Reverse
26
Overrunning Clutch Cam Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 14 Cam Lobes.
27
Overrunning Clutch Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 14 Rollers Nylon Caged, "O" Running
28
No.
Part # / Description / Price
Price
N/A
Output Shaft Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: 1.029 OD
N/A
4
Annulus Gear Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: 1.375 ID
5
6
Fiat MSRP $7.00
$4.98
7
10
Planetary Pinion Carrier Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
MSRP $250.00
$174.00
MSRP $250.00
$174.00
13
15
Sun Gear Shell Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: ~
19
23
26
Hex Flange Head Screw Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
Description: .25-28x.875
27
Transmission Overdrive Clutch Piston Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.
28
Transmission Module Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Intermediate Shaft, Thrust .060" Thick
30

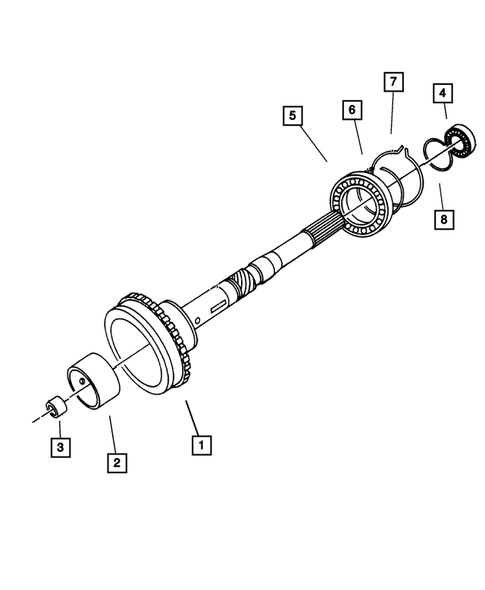

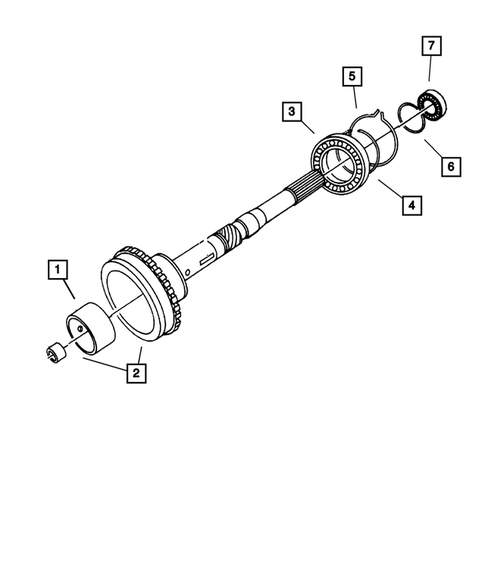

No.
Part # / Description / Price
Price
2
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Shaft and Bushings
2
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Includes Shaft, Drum, Gear, Drum and Snap Ring
2
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
3
Output Shaft Bearing, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: 52105959aa. From 9/10/02. Rear.
3
Output Shaft Bearing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
4
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Retainer snap ring for output shaft bearing
5
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
MSRP $9.05
$6.31
MSRP $9.05
$6.31
6
Snap Ring, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Rear.
MSRP $11.55
$8.08
MSRP $11.55
$8.08
No.
Part # / Description / Price
Price
1
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Shaft and Bushings
1
Output Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
4
Output Shaft Bearing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Front.
6
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Retainer snap ring for output shaft bearing
7
Snap Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.
MSRP $9.05
$6.31
MSRP $9.05
$6.31
8
Snap Ring, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Rear.
MSRP $11.55
$8.08
MSRP $11.55
$8.08
