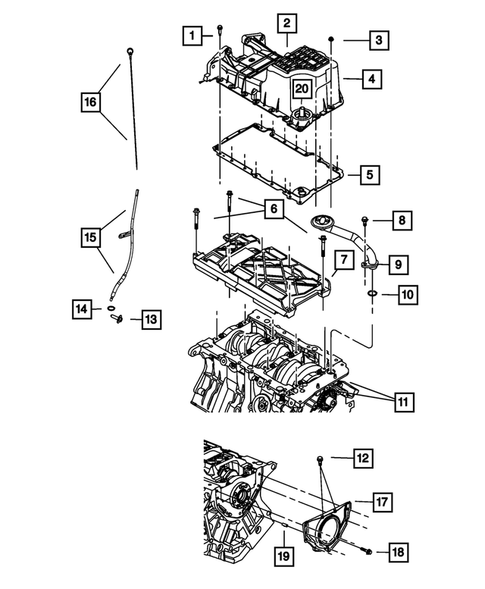

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2009 Dodge Challenger
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting
Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X40.00. Front Exhaust Pipe To Exhaust Manifold/Converter
MSRP $4.80
$3.36
MSRP $4.80
$3.36
2
Oil Drain Plug
Fiat
Fiat Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 5.7L HEMI VCT Engine. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. 6.1L V8 SRT HEMI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPEED AUTO W5A580 TRANSMISSION.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $15.85
$11.40
MSRP $15.85
$11.40
3
Hex Flange Nut Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.20
$2.95
MSRP $4.20
$2.95
3
Hex Flange Nut Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.30
$3.01
MSRP $4.30
$3.01
4
Oil Pan Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
4
Oil Pan Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Rear Wheel Drive.
MSRP $546.00
$372.60
MSRP $546.00
$372.60
5
MSRP $88.45
$55.55
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M10X1.50X100.00. Windage Tray To Cylinder Block Inner
MSRP $8.25
$5.72
MSRP $8.25
$5.72
8
Hex Head Locking Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
MSRP $11.00
$7.73
MSRP $11.00
$7.73
10
MSRP $6.65
$2.42
11
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
12
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6X1.00X23.00. Oil Pan To Rear Retainer
14
Engine Oil Indicator Tube O Ring Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPEED AUTO W5A580 TRANSMISSION.
15
Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
MSRP $46.55
$32.69
MSRP $46.55
$32.69
16
Engine Oil Level Indicator Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Rear Wheel Drive
MSRP $34.75
$24.31
MSRP $34.75
$24.31
17
Crankshaft Rear Oil Seal Retainer Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: See note. After build date TDDE92373XXXXX, One Piece Assembly
MSRP $174.00
$119.48
MSRP $174.00
$119.48
18
Torx Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6X1.00X17.00. Crankshaft Rear Oil Seal retainer To Cylinder Block
19
Dowel Pin, Mounting, Upper Fiat
Fiat Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Oil Pan To Cylinder Block
MSRP $8.75
$6.18
MSRP $8.75
$6.18
20
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 5.7L HEMI VCT Engine. 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. 6.1L V8 SRT HEMI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPEED AUTO W5A580 TRANSMISSION.
Description: M22X1.50. Mounts On Oil Pan
MSRP $24.65
$17.35
MSRP $24.65
$17.35
No.
Part # / Description / Price
Price

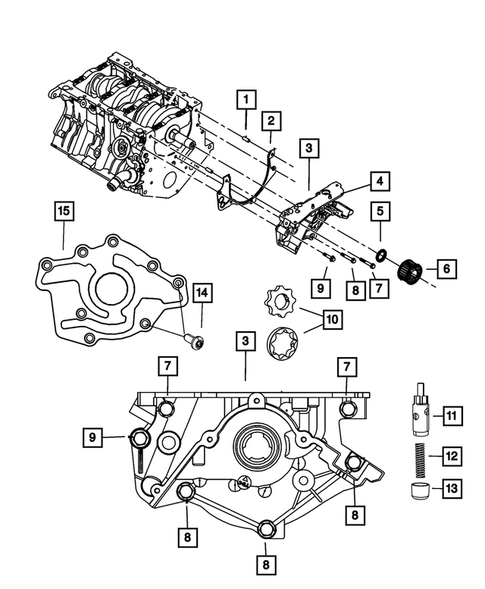

2
Oil Pump Gasket Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. After Build Date TDDE92373XXXXX
MSRP $20.60
$14.40
MSRP $20.60
$14.40
3
Engine Oil Pump Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Includes Rotor Set, Plunger, Spring, Cap, Back Cover And Body
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
5
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Front
MSRP $26.25
$18.59
MSRP $26.25
$18.59
6
Timing Belt Gear Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Crankshaft Timing Belt
7
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X55.00. Oil Pump Body To Cylinder Block
8
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M8X1.25X35.00. Primary Tensioner Arm To Cylinder Block
MSRP $9.30
$6.55
MSRP $9.30
$6.55
9
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M10X1.50X70.00. Oil Pump Body To Cylinder Block
10
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
11
14
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: M6x1.00x15.00. Oil Pump Cover To Timing Cove[M6x1.00x15.00]
No.
Part # / Description / Price
Price

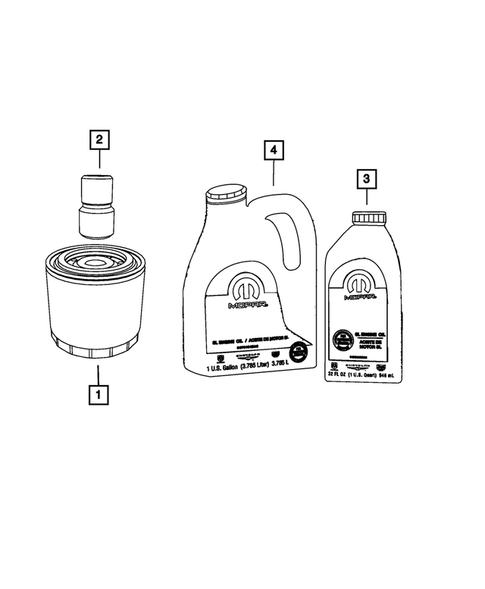

1
Engine Oil Filter, Small Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE.
Description: Small Oil Filter Is Used Due To Clearance Issue With Radiator Hose
MSRP $13.10
$9.20
MSRP $13.10
$9.20
2
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPEED AUTO W5A580 TRANSMISSION.
Description: M22X1.50. Mounts On Oil Pan
MSRP $24.65
$17.35
MSRP $24.65
$17.35
