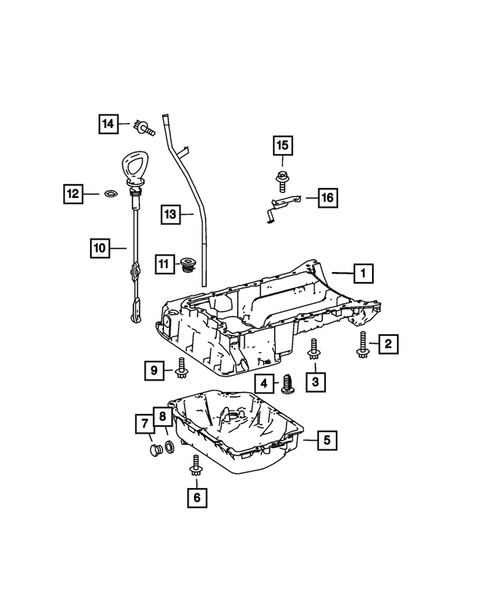

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2009 Dodge Sprinter 3500
No.
Part # / Description / Price
Price
2
Screw
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Intermediate Flange To Transmission Case [M8x25]
MSRP $16.70
$11.80
MSRP $16.70
$11.80
6
9
Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Upper Part of Oil Pan to Crankcase M6x28
11
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Level Indicator Tube Grommit And Seal
12
Engine Oil Level Tube O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Indicator Seal
14
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x1.00x10.90. Engine Oil Level Indicator Tube To Cylinder Block
MSRP $2.85
$2.01
MSRP $2.85
$2.01
15
6 Lobe Recessed Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M12X1.25X45.00. Oil Pan To Upper Casting [M6x1.0x25.0]

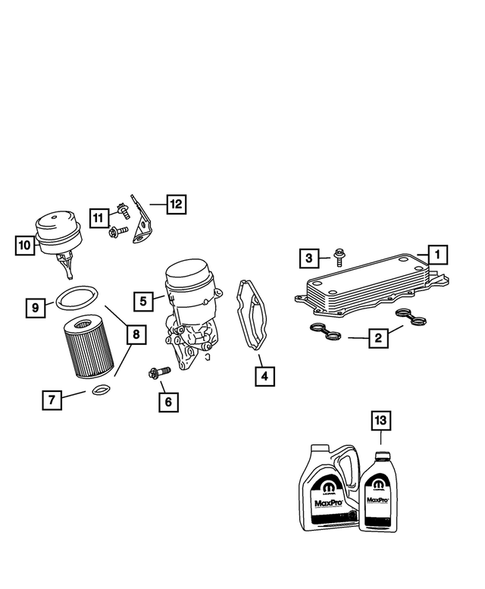

No.
Part # / Description / Price
Price
2
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Cooler to Cylinder Crankcase
MSRP $18.75
$13.22
MSRP $18.75
$13.22
3
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Cooler to Cylinder Crankcase
3
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Cooler to Cylinder Crankcase
4
Oil Filter Housing Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Filter to Cylinder Crankcase
6
Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Oil Filter to Cylinder Crankcase M7x25 MK
11
6 Lobe Recessed Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M12X1.25X45.00. Oil Pan To Upper Casting [M6x1.0x25.0]
12
13

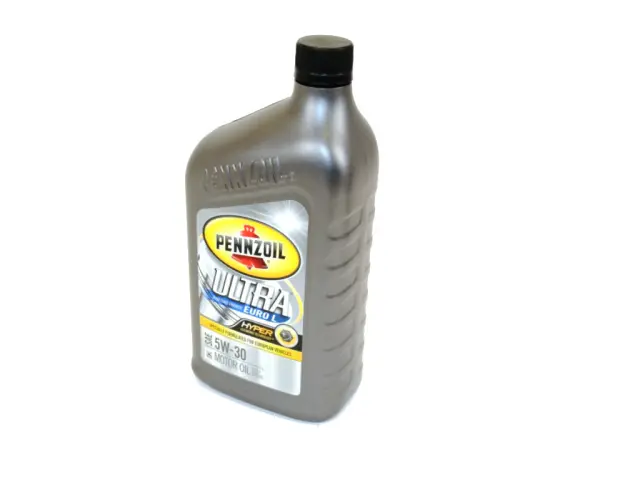

5w30 Engine Oil 2 Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Liter. Standard MS-11106 (MB-229.51). [1 liter] Minimum Ship Quantity Of 12
MSRP $13.33
$9.44
MSRP $13.33
$9.44
13
5w30 Engine Oil Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Liter. Standard MS-11106 (MB-229.51). [1 liter] Minimum Ship Quantity Of 12
2 This part contains hazardous materials. Extra shipping costs apply.

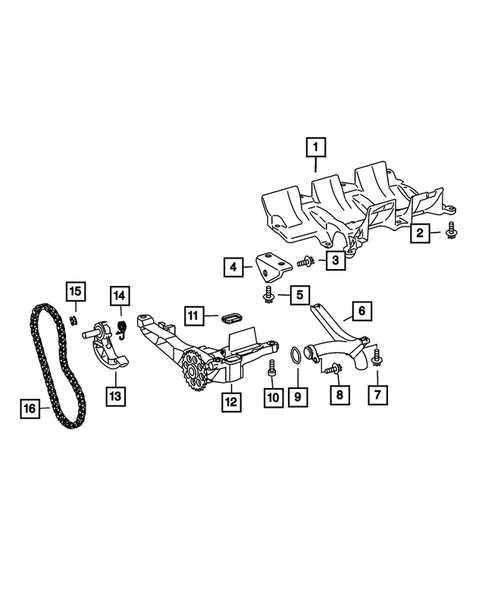

No.
Part # / Description / Price
Price
2
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [M6.0X1.0X19.0]. Engine Oil Cooler
MSRP $6.45
$4.43
MSRP $6.45
$4.43
3
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [M6x1.0x12.0]. Rear Seal Retainer To Cylinder Block
MSRP $10.35
$7.26
MSRP $10.35
$7.26
10
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Engine Oil level indicator Tube
13
Timing Chain Guide Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Suction Basket to Oil Pump Housing
13
Timing Chain Guide Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Suction Basket to Oil Pump Housing
14

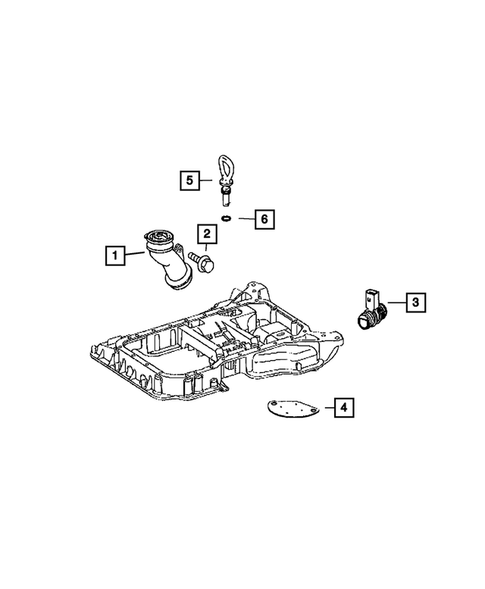

No.
Part # / Description / Price
Price
2
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [M6x1.0x12.0]. Rear Seal Retainer To Cylinder Block
MSRP $10.35
$7.26
MSRP $10.35
$7.26
3
Crankcase Vent Valve Tube Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Crankcase Breathing
MSRP $118.00
$80.04
MSRP $118.00
$80.04
6
Engine Oil Level Tube O Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Indicator Seal
