Manifolds and Vacuum Fittings for 2017 Fiat 500
No.
Part # / Description / Price
Price

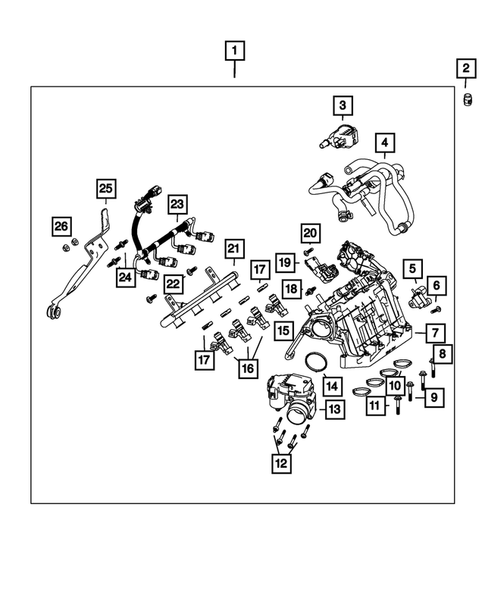

1
Intake Manifold
Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: With Long Wiring Pig Tail For Purge Control Valve.
MSRP $1,235.00
$818.12
MSRP $1,235.00
$818.12
2
Cap Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Power Brake Booster Port
MSRP $17.80
$12.57
MSRP $17.80
$12.57
3
MSRP $83.45
$58.88
4
MSRP $109.00
$74.82
5
Purge Control Valve, Vacuum Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $113.00
$76.79
MSRP $113.00
$76.79
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00x16.00. Fuel Rail To Intake Manifold
MSRP $2.60
$1.77
MSRP $2.60
$1.77
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M7X1.00X42.00. Intake Manifold To Cylinder Head Cover
MSRP $2.60
$1.77
MSRP $2.60
$1.77
9
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6X1.00X30.00. Intake Manifold To Cylinder Head Cover
MSRP $2.85
$1.95
MSRP $2.85
$1.95
10
MSRP $25.10
$17.76
11
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00x16.00. Engine Cover Bracket To Front Cover
MSRP $8.80
$6.20
MSRP $8.80
$6.20
12
Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00. Electronic Throttle Body To Intake Manifold
MSRP $5.05
$3.48
MSRP $5.05
$3.48
13
MSRP $322.00
$223.88
14
MSRP $20.20
$14.28
15
MSRP $23.55
$16.58
16
MSRP $172.00
$119.48
17
MSRP $15.70
$10.97
19
Map Sensor Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: MAP
MSRP $105.00
$72.62
MSRP $105.00
$72.62
20
Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M5X18. Map Sensor To Intake Manifold
MSRP $3.00
$2.07
MSRP $3.00
$2.07
23
Injector Wiring Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Use With 04892937AJ Intake Manifold
24
Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6x1.00. Intake Manifold To Support Bracket
MSRP $2.90
$1.95
MSRP $2.90
$1.95
25
Intake Manifold Bracket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: After 11/17/2014
MSRP $46.35
$32.80
MSRP $46.35
$32.80
26
Hex Flange Locking Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00. Turbocharger Heat Shield Isolator To Turbocharger
MSRP $2.10
$1.48
MSRP $2.10
$1.48
No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: EXHAUST MANIFOLD
MSRP $66.95
$47.20
MSRP $66.95
$47.20
2
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X.00X14.00. Exhaust Manifold Gasket To Turbocharger Heat Shield
MSRP $4.15
$2.89
MSRP $4.15
$2.89
3
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M8X1.25X54.00. Exhaust Manifold To Cylinder Head
MSRP $16.20
$11.33
MSRP $16.20
$11.33
4
Fiat MSRP $27.10
$19.38
5
Hex Flange Locking Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: M6x1.00. Turbocharger Heat Shield Isolator To Turbocharger
MSRP $2.10
$1.48
MSRP $2.10
$1.48
6
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X1.00X32.50. Heat Shield To Exhaust Manifold
MSRP $3.70
$2.54
MSRP $3.70
$2.54
7
MSRP $546.00
$372.60
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M6X1.00X13.00. Turbocharger Heat Shield To Turbocharger
MSRP $11.05
$7.73
MSRP $11.05
$7.73
9
Spacer, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Exhaust Manifold To Cylinder Head
MSRP $8.40
$5.90
MSRP $8.40
$5.90
10
Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: M8x1.25. Turbocharger And Heat Shield To Cylinder Head
MSRP $4.20
$2.95
MSRP $4.20
$2.95
11
Exhaust Manifold Shield Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: AIR, FUEL, EMISSIONS, EXHAU
MSRP $53.95
$38.00
MSRP $53.95
$38.00
