Wiring-Powertrain for 2017 Fiat 500
No.
Part # / Description / Price
Price
1
Engine Wiring
Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: ENGINE
MSRP $522.00
$355.35
MSRP $522.00
$355.35
1
Engine Wiring Mopar
Mopar Notes: Engines: 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE.
Description: ENGINE
2
Engine Block Heater Cord Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
MSRP $168.00
$115.48
MSRP $168.00
$115.48
3
Engine Block Heater Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 MULTIAIR 16V ENGINE.
Description: Engine Heater
MSRP $121.00
$82.19
MSRP $121.00
$82.19
4
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. 1.4L I4 MULTIAIR TURBO ENGINE. 83 KW ELECTRIC MOTOR. Transmissions: 5-Spd C510 Manual Transmission. 6-SPD AISIN F21-250 HD AUTO TRANS.
Description: M6x1.00. Oil Pan To Oil Pump
MSRP $2.60
$1.77
MSRP $2.60
$1.77
5
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-Spd C510 Manual Transmission.
Description: M6x1.00x16.00. Engine Cover Bracket To Front Cover
MSRP $8.80
$6.20
MSRP $8.80
$6.20
6
Engine Wiring Bracket Mopar
Mopar Notes: Transmissions: 6-SPD AISIN F21-250 HD AUTO TRANS.
MSRP $14.20
$10.03
MSRP $14.20
$10.03
7
Engine Wiring Bracket Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: ENGINE WIRING
MSRP $36.35
$25.67
MSRP $36.35
$25.67

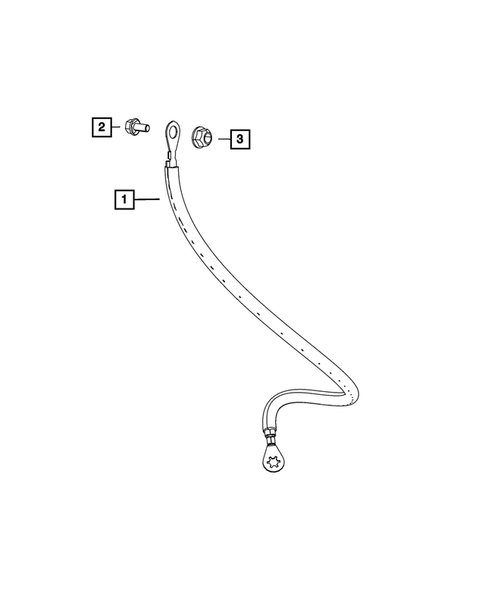

No.
Part # / Description / Price
Price
1
Ground Strap Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: ECU Ground
MSRP $16.00
$11.33
MSRP $16.00
$11.33
1
Ground Strap Mopar
Mopar Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100).
Description: ECU ground strap
1
Ground Strap Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE.
Description: Engine Ground Strap
1
Ground Strap Mopar
Mopar Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE.
Description: Engine Ground Strap
MSRP $192.00
$132.24
MSRP $192.00
$132.24
2
Hex Flange Head Bolt
Fiat
Fiat Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION. 6-SPD AISIN F21-250 AUTO TRANS.
Description: M8x1.25x16. Outlet hose to engine
MSRP $2.15
$1.50
MSRP $2.15
$1.50
3
Hex Flange Lock Nut, Mounting Fiat
Fiat Notes: Transmissions: 5-Spd C510 Manual Transmission. 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION.
Description: Size M8x1.25. Air Cleaner Bracket to Body
MSRP $9.60
$6.90
MSRP $9.60
$6.90

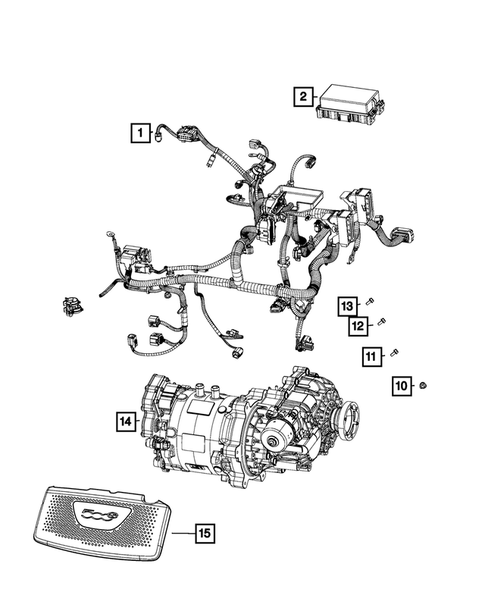

No.
Part # / Description / Price
Price
N/A
Mini Fuse Mopar
Mopar Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 83 KW ELECTRIC MOTOR. Transmissions: 5-Spd C510 Manual Transmission. 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION. 6-SPD AISIN F21-250 AUTO TRANS. 6-SPD AISIN F21-250 HD AUTO TRANS. SINGLE SPEED TRANSMISSION.
Description: 10 AMP, Red. Regular Mini Fuse
MSRP $3.70
$2.54
MSRP $3.70
$2.54
N/A
Mini Fuse Mopar
Mopar Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 83 KW ELECTRIC MOTOR. Transmissions: 5-Spd C510 Manual Transmission. 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION. 6-SPD AISIN F21-250 AUTO TRANS. 6-SPD AISIN F21-250 HD AUTO TRANS. SINGLE SPEED TRANSMISSION.
Description: 5 Amp, Tan. Regular Mini Fuse
MSRP $3.80
$2.60
MSRP $3.80
$2.60
N/A
Mini Fuse Mopar
Mopar Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 83 KW ELECTRIC MOTOR. Transmissions: 5-Spd C510 Manual Transmission. 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION. 6-SPD AISIN F21-250 AUTO TRANS. 6-SPD AISIN F21-250 HD AUTO TRANS. SINGLE SPEED TRANSMISSION.
Description: 15 AMP, Light Blue. Standard Mini Fuse
MSRP $3.55
$2.42
MSRP $3.55
$2.42
10
Hex Flange Lock Nut, Mounting Fiat
Fiat Notes: Transmissions: 5-Spd C510 Manual Transmission. 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION.
Description: Size M8x1.25. Air Cleaner Bracket to Body
MSRP $9.60
$6.90
MSRP $9.60
$6.90
11
Hex Flange Head Bolt Fiat
Fiat Notes: Engines: 1.4L I4 FIRE 8V ENGINE (E0). 1.4L I4 FIRE 8V ENGINE (E22-E100). 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 FIRE MAIR 16V ENG (E100). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 5-SPD C514 AUTOMATED MANUAL TRANS. 5-SPD C514 MANUAL TRANSMISSION. 6-SPD AISIN F21-250 AUTO TRANS.
Description: M8x1.25x16. Outlet hose to engine
MSRP $2.15
$1.50
MSRP $2.15
$1.50

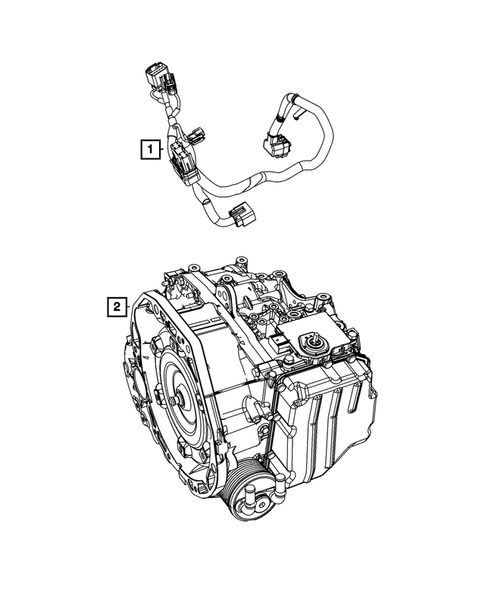

No.
Part # / Description / Price
Price
1
Transmission Wiring Mopar
Mopar Notes: Transmissions: 6-SPD AISIN F21-250 HD AUTO TRANS.
MSRP $117.00
$79.81
MSRP $117.00
$79.81
1
Transmission Wiring Mopar
Mopar Notes: Engines: 1.4L I4 16V MULTIAIR TURBO ENGINE. 1.4L I4 FIRE MAIR 16V ENG (E0-E22). 1.4L I4 MULTIAIR 16V ENGINE. Transmissions: 6-SPD AISIN F21-250 AUTO TRANS. 6-SPD AISIN F21-250 HD AUTO TRANS.
MSRP $335.00
$230.84
MSRP $335.00
$230.84
